how to install single tab fins
- Don't apply excess force
- Don't over-tighten
- Always ensure a firm fit before
- Over-tightening can cause the screw tip to strip in addition to the thread
- Twin Tab Fin
- Fin Key

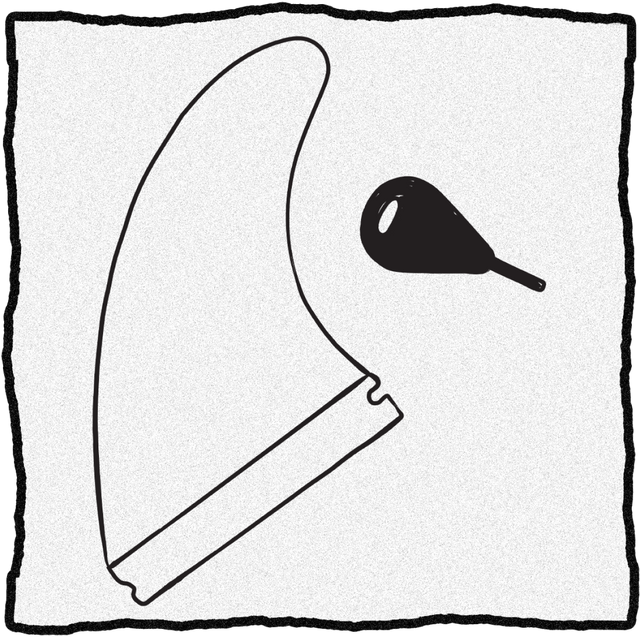

Step 1:Start by loosening your single tab fin screws with a fin key.

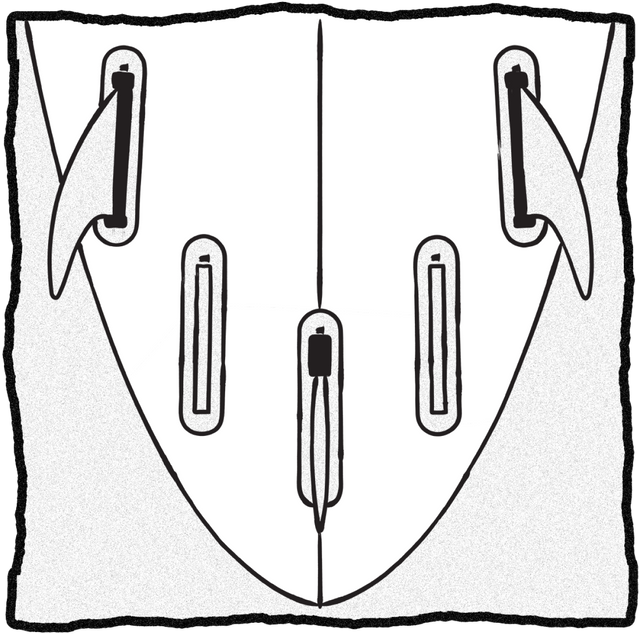

Step 2:Identify each fin and its required location. The centre fin should sit up straight whilst the side fins should taper slightly towards the rail.

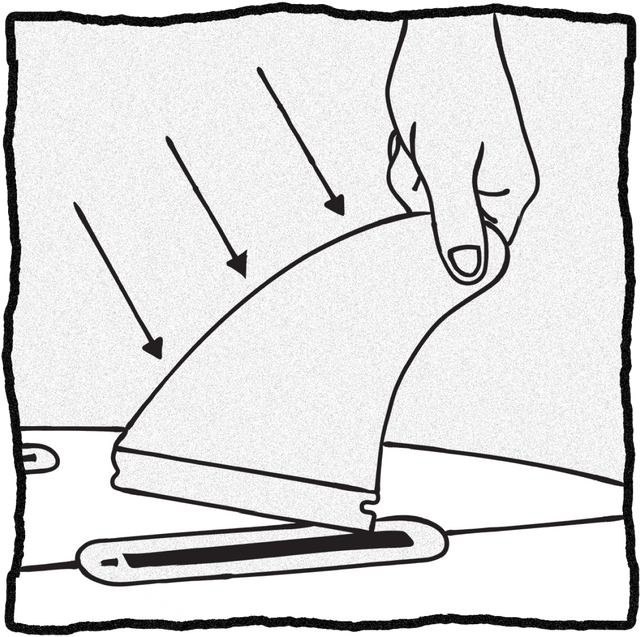

Step 3:Insert the fin into the fin box (tail end first) ensuring the fin locates into the groove.

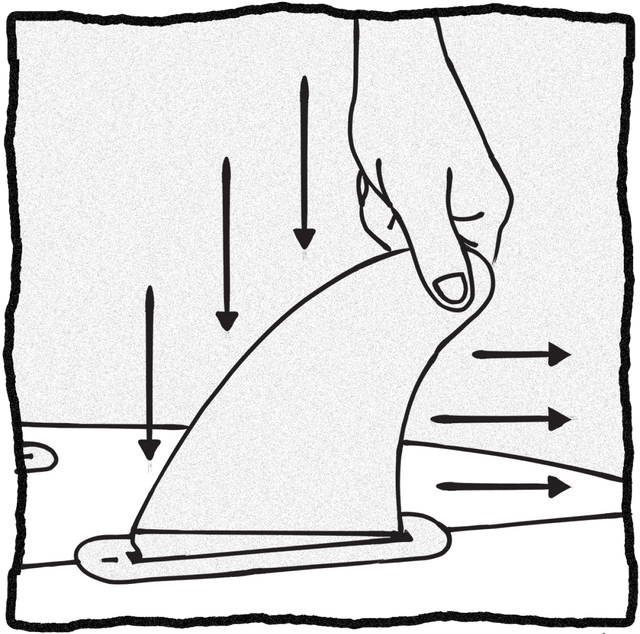

Step 4:Once the tail of the fin is located, push the fin backwards and downwards to locate the fin into the fin box.

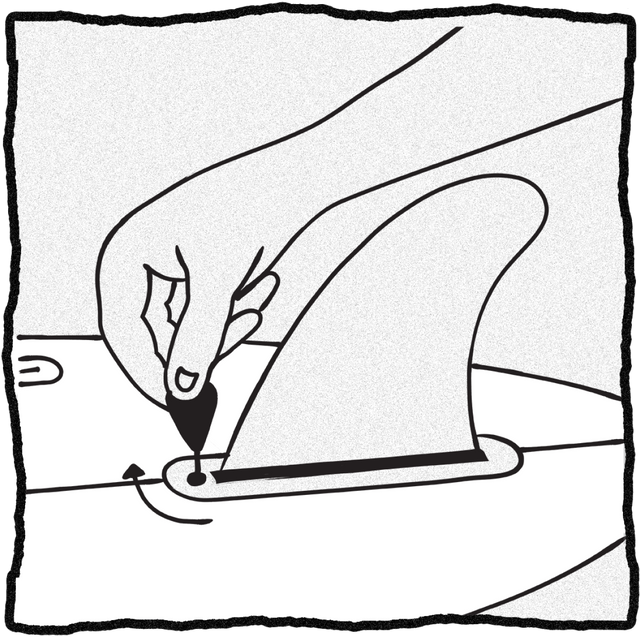

Step 5:Tighten fin screws for a firm fit.
Step 6:Go shred!
